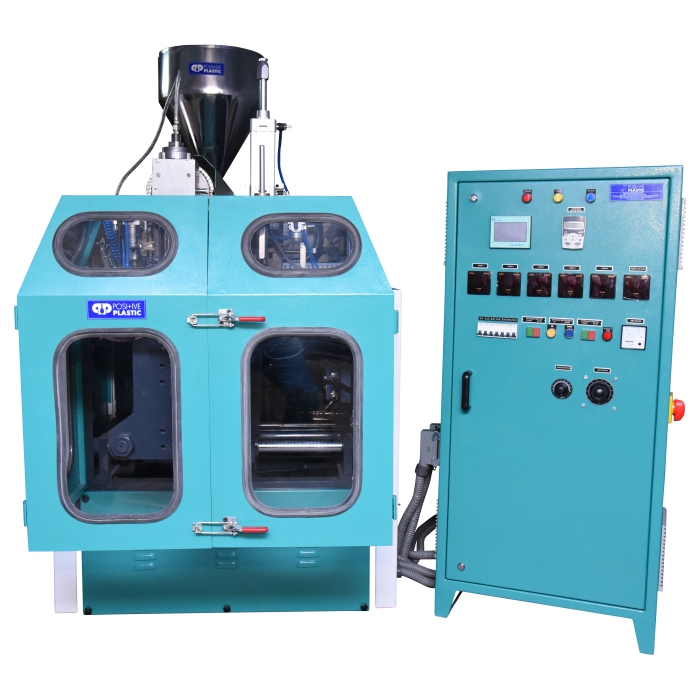

  • Blow Moulding Machine

    example2

    Our company is keened and equipped to deliver you the ease. The materials that are being used in manufacturing Blow Moulding Machine are of top-tier quality and the latest technology machineries are implemented in it. The operators and other craftsmen are diligent and skilled in their respective field. Being the recent Blow Moulding Machine manufacturers, the organization is aware with the up to date features of supplying the excellent and completely well organized and well planned. Our products have a variety of applications. They are used in plastic making industries to manufacture plastic commodities.

    There are three models of Blow Moulding Machine get-at-able. They are as following:
    • 1 Ltr. Single Station (Hydraulic)
    • 3 Ltr. Blow Double Station (Hydraulic)
    • 1 Ltr. Double Station (Hydraulic)

HYDRAULIC OPERATED MACHINE

Models      1000/H/1 1000/H/2 2000/H/1 2000/H/2 5000/H/1 5000/H/2
Screw Diameter MM 45 50 50 65 65 90
L.D Ratio L/D 22.1 22.1 22.1 22.1 22.1 22.1
Blowing Capacity ML 1000 1000 2000 2000 5000 5000
Screw Speed R.P.M. 0-75 0-75 0-75 0-75 0-75 0-75
Plasticizing Cap. Kg/Hr. 15/20 22/26 22/28 40/45 40/45 90/100
Heating Zones Nos. 5 5 5 6 6 8
Maximum Die Dia. HD 60 68 80 80 140 140
Maximum Die Dia. PVC 40 50 60 60 - -

Mould Opening Stroke MM 185 185 200 200 250 250
Min Mould Thickness MM 180 180 205 205 260 260
Mould Length MM 340 340 350 350 450 450
Mould Width MM 220 220 250 250 320 320
Dry Cycle / Min Nos 15 12 12 10 10 8

Max. Container Dia MM 125 125 150 150 200 200
Extruder Drive HP 7.5 10 10 15 15 30
Hydraulic Motor HP 3 5 5 7.5 7.5 10
Blowers HP

Heating Load HP 12 14 14 20 20 30
Total Power of M/C. HP 22.5 29 29 43 43 70
Main Cable Rating   16/57 25/71 25/71 35/91 35/91 95/201

Bobbing OPT OPT OPT OPT OPT OPT OPT
Parison Programmer OPT OPT OPT OPT OPT OPT OPT
Hot Wire Cutter OPT OPT OPT OPT OPT OPT OPT
Double / Triple Head OPT OPT OPT OPT OPT OPT OPT
Bottom Blowing System OPT OPT OPT OPT OPT OPT OPT
V-Strip / Zebra Line OPT OPT OPT OPT OPT OPT OPT
Hydraulic Blowing OPT OPT OPT OPT OPT OPT OPT
Bobbing OPT OPT OPT OPT OPT OPT OPT
Oil Tank Capacity Ltrs. 150 200 170 270 250 300
M/C Dimension (LxWxH) Mtrs. 1.9x1x1.2 2.3x2.2x2.2 2.3x1.4x2.5 2.7x2.2x2.5 2.8x1.8x2.5 3.5x2.5x2.7
Machine & Panel Weight Kgs. 1700 2700 2000 4200 400 7000
Air Requirement C.F.M. 10 15 12 15 15 20
